Picture Name

DM.MOVABLE FANS


Picture Name

Variable speed

Picture Name

Energy efficient

Picture Name

Natural wind

Picture Name

Low noise

Picture Name

Compact structure

Picture Name

Easy to move

DM series PM VFD movable fan is a new product specifically developed for improving the comfort of the working environment. It features self-designed variable frequency speed control, high efficiency, and energy-saving permanent magnet external rotor motor drive. It has the advantages of low noise, small volume, lightweight, compact structure, and beautiful appearance.

Application

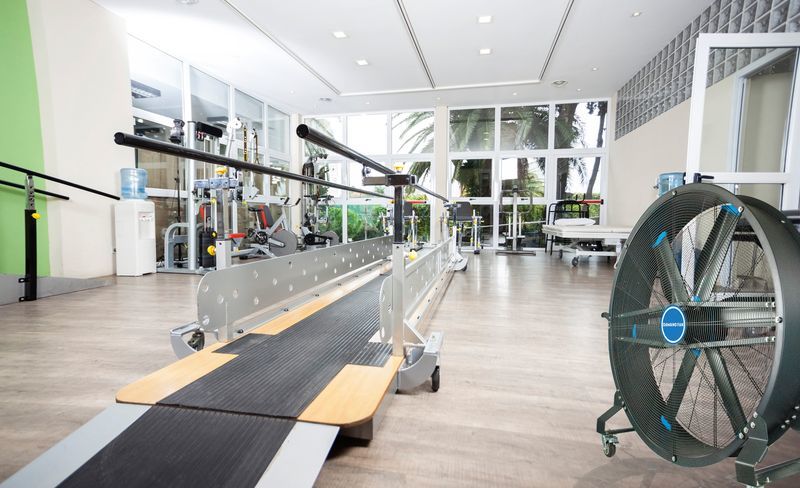

Fitness centers

Fitness centers

Autdoor weddings

Autdoor weddings

Industrial factory

Industrial factory

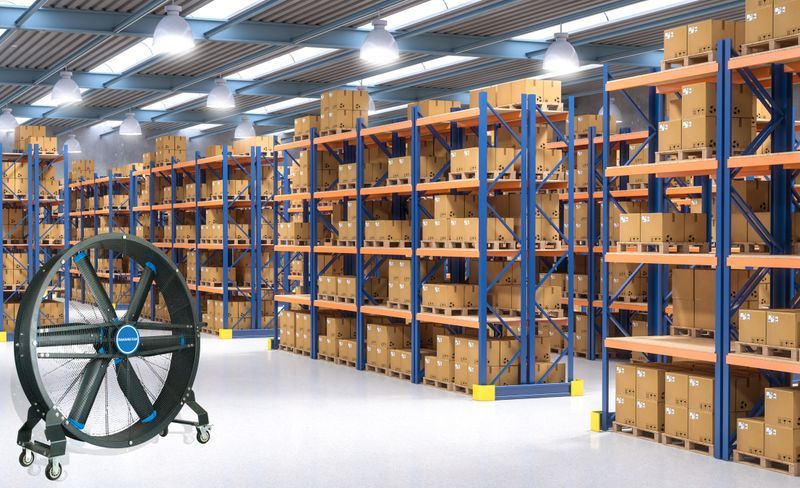

Logistics warehousing

Logistics warehousing

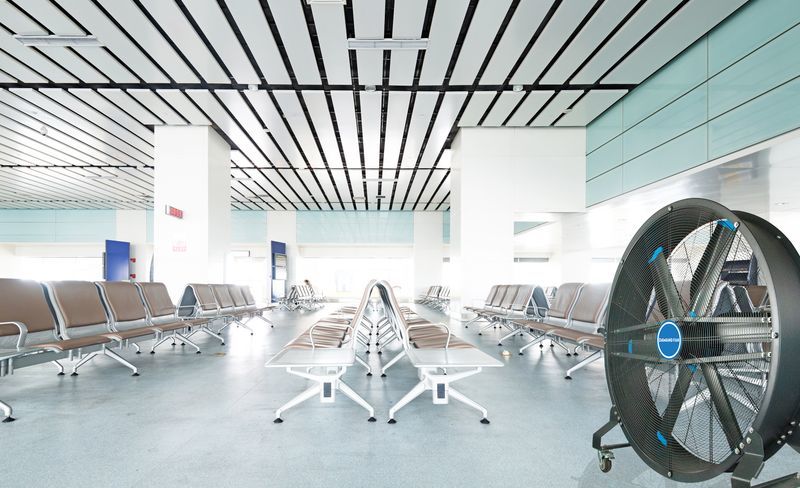

Waiting rooms

Waiting rooms

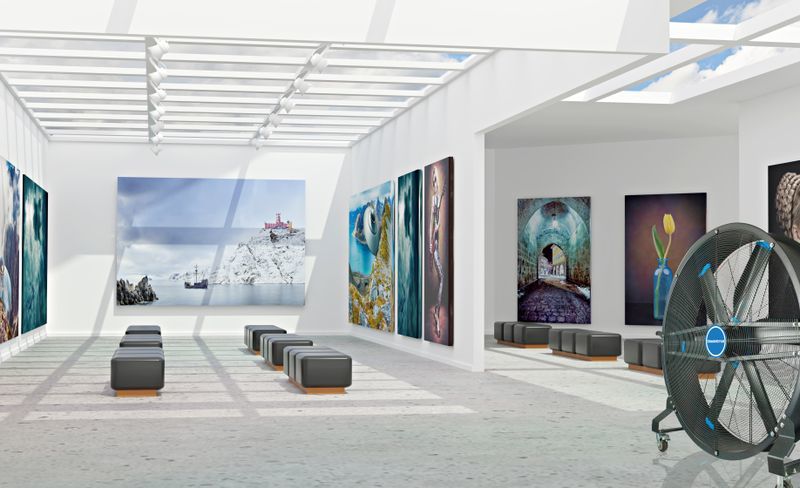

Exhibition halls

Exhibition halls

Gymnasiums

Gymnasiums

Large shopping malls

Large shopping malls

39dB

Ultra-quiet energy-saving comfort

PERMANENT MAGNET SYNCHRONOUS MOTOR

Picture Name

Characteristics

  • The rotor has no copper loss
  • High efficiency and high precision
  • Large power factor
  • Improve the grid environment
  • FM width (0~200HZ)
  • Small size, light weight
  • Energy Saving and High Efficiency (Level 1 Energy Efficiency)
Picture Name
Picture Name

1~2m

Blade diameter

Picture Name

1m~7m/s

Wind speed range

Picture Name

28m

Maximum blowing
distance

Natural three-dimensional air supply, enhance human comfort

Picture Name

AIRFOIL INTERNAL REINFORCEMENT STRUCTURE

Picture Name

STREAMLINED FAN BLADE

Picture Name

ADJUSTABLE AIR SUPPLY ANGLE

Picture Name

SMART CONTROL SYSTE

Performance parameters

Model Diameter
(m)
Voltage
(v)
Frequency
(Hz)
Power
(kw)
Rotating Speed
(rpm)
DM-79 2 220/380 50/60 1 ≤300
DM-59 1.5 220/380 50/60 0.75 ≤420
DM-39 1 220/380 50/60 0.55 ≤600





Model Air speed
(m/s)
Airflow
(㎡/h)
Weight
(kg)
Noise
(db)
Coverage area
(㎡)
DM-79 1-5.5 80000 122 39 260
DM-59 1-6.5 55000 93 39 150
DM-39 1-7 30000 45 39 80

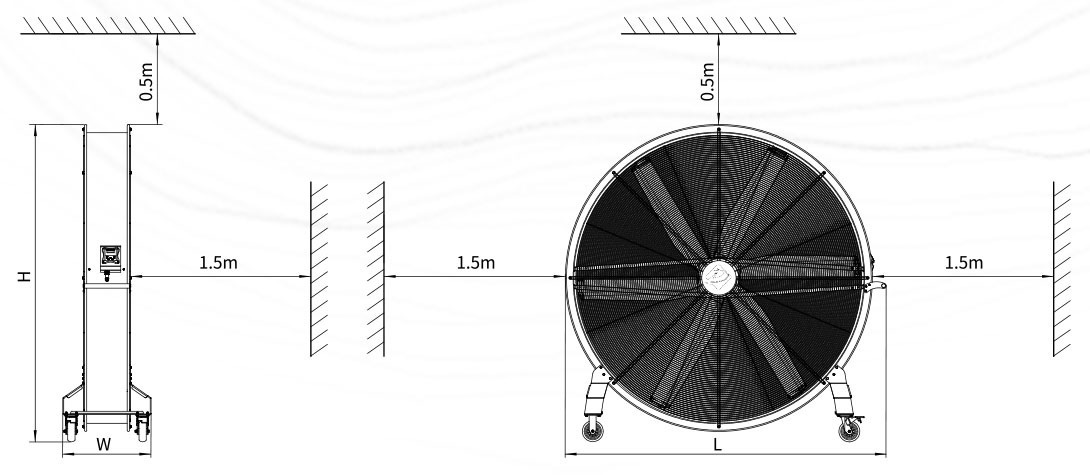

Placement Environment



DM移动系列



INSTALLATION DATA



Model L
(cm)
W
(cm)
H
(cm)
DM-79 222 73 219
DM-59 172 60 169
DM-39 122 50 119

Free consultation

Whether you are in the industrial park factory, station, warehouse, shopping mall or school, our experts will provide you with more relaxed, more comfortable, more convenient program for your reference.

You can call us at any time for advice.400-086-9230, or request a quote to find out more about how the king is ventilated.
