D.Fans is the new HVLS energy-saving large industrial fan based on aerodynamic principles developed by Dawang.Low speed,large volume,all direction air circulation,push 1-3 level natural wind,eliminate the heat and sultry,balance the humidity,increase the oxygen,exhaust the smoke and dust,reduce the bacterial concentration,effectively solve the stuffiness of tall spaces Difficulties such as humidity,air stratification,smoke and dust.
D.Fans large industrial fans have 10+ safety guarantee systems such as patented tenon-and-mortise connection,buffer device and anti-impact cushioning functions.Get FCC, CE, ROSH, CCC, CSA, GL, UL certifications and authoritative destructive test of key components.Instead of high energy ventilation equipment,save 70% energy.Combine with air conditions,it can save more than 30% energy.

DAWANG

10+
Safety guarantees

DAWANG

Long life free maintenance
PMSM motor

DAWANG

15072m³/min
Full air volume

DAWANG

8m
Fan diameter

DAWANG

1.5kw/h
Motor power

DAWANG

App
Easy and convenient

Choose the right fan

Say goodbye to danger

DAWANG
图片名称

Easy to break

Ordinary profile blade

DAWANG
DAWANG

Easy to break

hard connection

DAWANG
图片名称

Easy to fall

Tenonless structure

DAWANG
图片名称

No break, No fall

Dawang Ventilation high quality material structure large fan

10+ SAFETY GUARANTEE


DAWANG

ANTI-FALL SELF -LOCKING DEVICE

Motor tension device(patented design)forms self-locking to fasten the hub and shaft.

DAWANG

ANTI-FALLING SAFETY RING

Connect the 5 petioles into a whole to form the sleeve with the frame lower hub to prevent the petioles from falling.

DAWANG

MORTISE AND TENON PETIOLE CONNECTION

The convex petiole with concave buffer device form the Joint engaged,eliminate the centrifugal force from the blades when the fan is running and the shear force when the fan starts and stops.

DAWANG

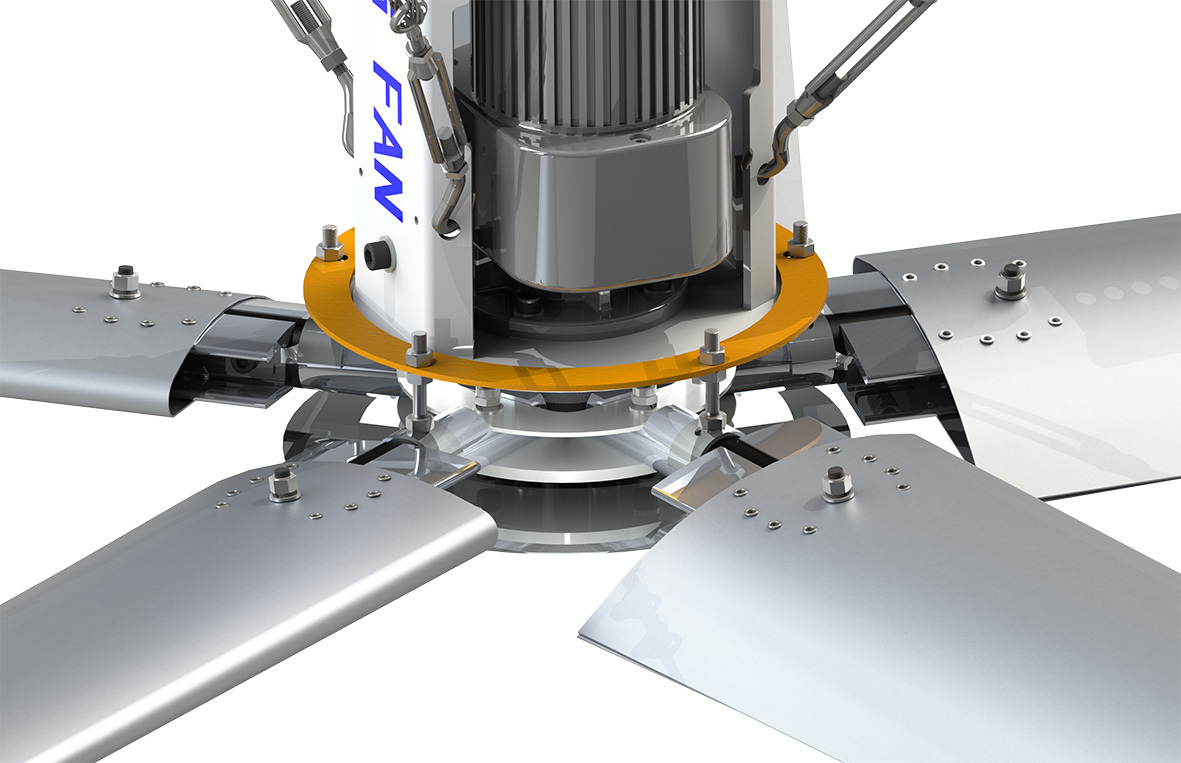

INTEGRATED HUB

Integrated hub embedded with 5pcs shaped fasteners form a whole to load min 11Ton tensile

DAWANG

ANTI-WELDING SAFETY DEVICE

The L-shaped device connects the frame flange plate and its brackets firmly together,even if the flange plate and brackets are unwelded,the whole fan frame structure still firm and not falling down.

DAWANG

BUFFER DEVICE

The blade and petiole flexible connects with buffer device, the rubber absorbs the most vibration from blades when running.

DAWANG

STREAMLINED VARIABLE CROSS-SECTION

Conform to aerodynamic equal chord length theory,combined with the relative linear velocity principle,the blade narrows and thins from root to tip till tail then widen,the air is more even and uniform.

DAWANG

AVIATION ALUMINUM PLATE

1.5mm thickness 5052 Ultra-high toughness aviation aluminum plate can load more than 3Ton tensile to ensure the blade can deform quickly and absorb external force effectively, It can prevent the blade from breaking,avoid the damage to the motor and other structural parts reatly.

DAWANG

BLADE HIGH-STRENGTH CONNECTION

Each blade is fixed with the buffer cavity by 16pcs high-strength rivets, each rivet can load 1.5 ton shear force.

DAWANG

WIRE ROPE BALANCE PROTECTION

Four wire ropes are fixed with building traction to prevent shaking and falling.

DAWANG

WIRE ROPE WIND PROTECTION

Mounting bracket and I Beam winded with 1000KG tensile wire rope to prevent sliding and falling.

DAWANG

REAL-TIME MONITOR AND INITIATIVE MAINTENANCE

Dawang intelligent remote control system realtime monitor the fan operating parameters,motor temperature rise ,fan horizontal level and so on.

dawang

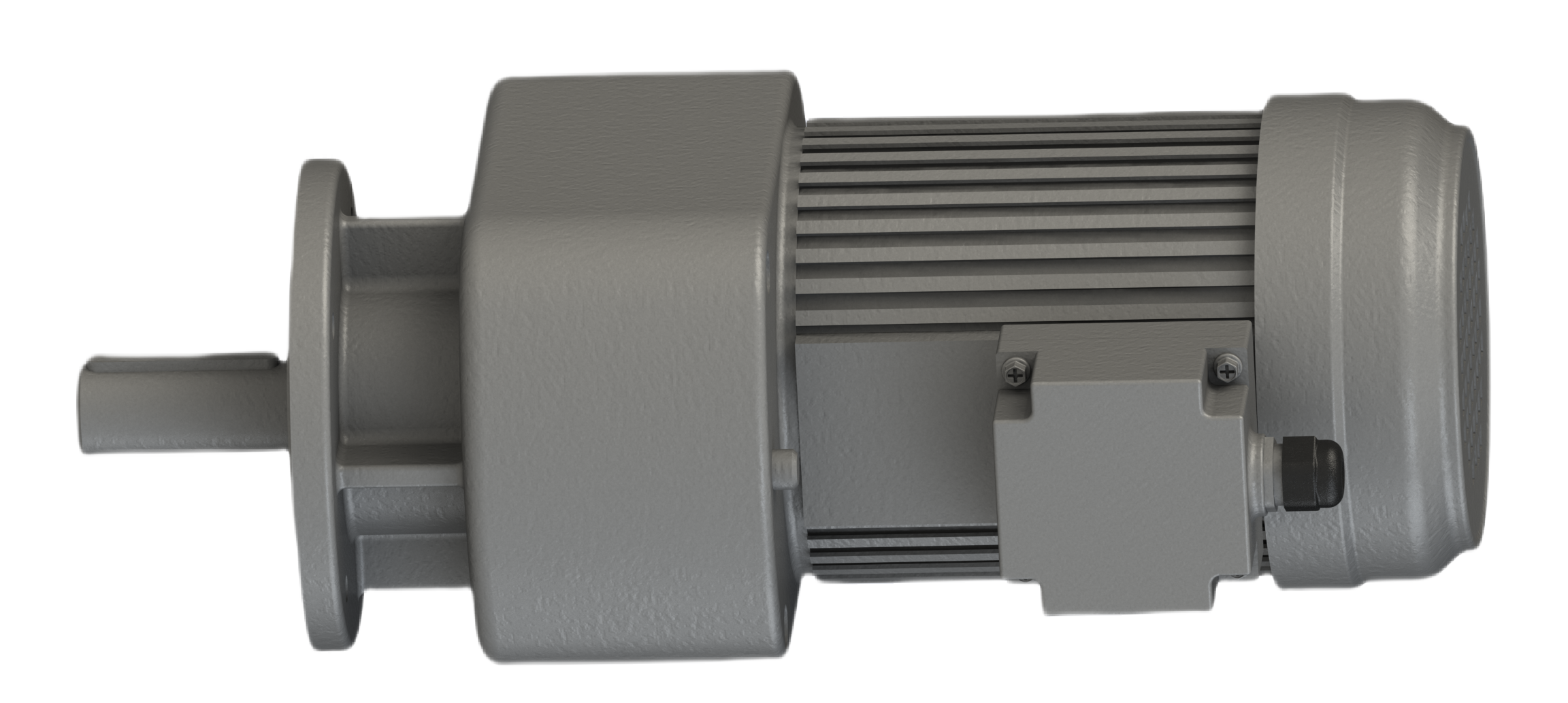

Dynamic systems:Nord gear motor

1.High efficiency:IE2 high energy saving standard,save 5-10% than IE1.
2.High reliability:high axial and radial load to ensure the operation.
3.Lower noise:Low gap assembly and grind process,low vibration and noise.
4.High safety factor:Strengthen the bearing frame,trapezoid shaft structure,enlarge the seal,more safety.
5.Get CCC、CE、UL certification.

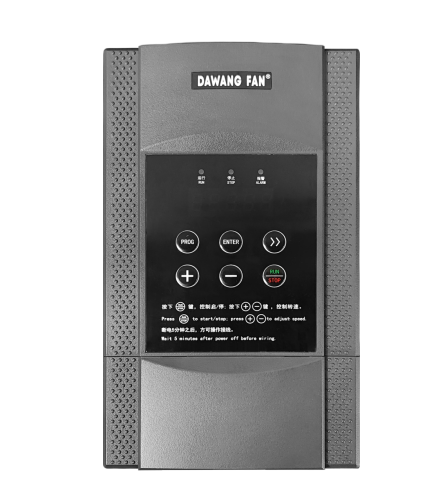

Vfd:Schneider electric suit

1.Flux vector control,smoother start.
2.Safety protection module cut off the output in case of accident automatically.
3.Adapt to harsh environments,effectively resist fast transients,electrostatic discharge antiinterference,surge discharge anti-interference,avoid conduction interference,shield electromagnetic,power grid,high temperature.The protect grade up to IP55.
4.Pass EMC,CCC and electric-protection test.
5.Get UL,EMC,LVD,ROHS.

dawang
dawang


Blades- Airflow components

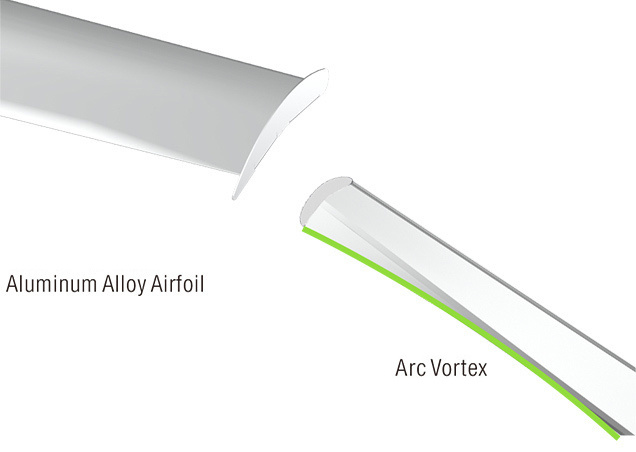

1.Blade design-Streamline variable cross-section
Conform to aerodynamic equal chord length theory,combined with the relative linear velocity principle,the blade narrows(304-186mm) and thins(43mm-21mm) from root to tip till tail then widen,the air is more even and uniform.
2.Blade material-Aviation aluminum alloy
1.5mm thickness No.5052H32 aviation aluminum alloy original plate,precision CNC molding,high strength and flexibility ensure the blade not to be broken.
3.Blade weight-More lighter and safer
6.7kg per blade(24ft),less blades,lighter weight,it can reduces the motor load,prolong the life,more safe and cost-efficient.

HUB

1.More mechanical properties:6061T6 aviation aluminum,perfect appearance and metal streamline to ensure the mechanical performance.
2.More precise dynamic balance:After CNC machining,max tolerance is 100μm to ensure the dynamic balance.

dawang
dawang

Mortise and tenon connection

Full mortise and tenon connection to ensure the fan’s safety.
1.Motor and hub:The inner and outer cone are firmly connected, forms self-locking to prevent falling.
2.Hub and petiole:The petiole and hub hook connected ,the bolt not stressed to ensure strength.
3.Blade and petiole:Centrifugal,resistance and buoyancy transfer to chassis by concaveconvex connection to avoid the fracture.

Applications

DAWANG
DAWANG
DAWANG
DAWANG
DAWANG
DAWANG

Technical Parameters

  D.Fans
Models D26 D24 D22 D20 D18 D16
Diameter(m) 8 7.3 6.7 6.1 5.5 4.9
Speed(rpm) 0-45 0-55 0-60 0-60 0-70 0-75
Air Volume(m³/min) 15072 13804 11630 9639 7836 6220
Coverage(m²) 2462 2123 1809 1520 1256 1017
Consumption(kw/h) ≤1.5 ≤1.2 ≤1.2 ≤1.0 ≤0.8 ≤0.8
Weight(kg) 106 101 99 96 95 90
Noise(dB) ≤38
Blade Nos(pcs) 5
Rated Power 1.5
Full Load Current(A) 3.2
Power Supply 380
*Custom is available

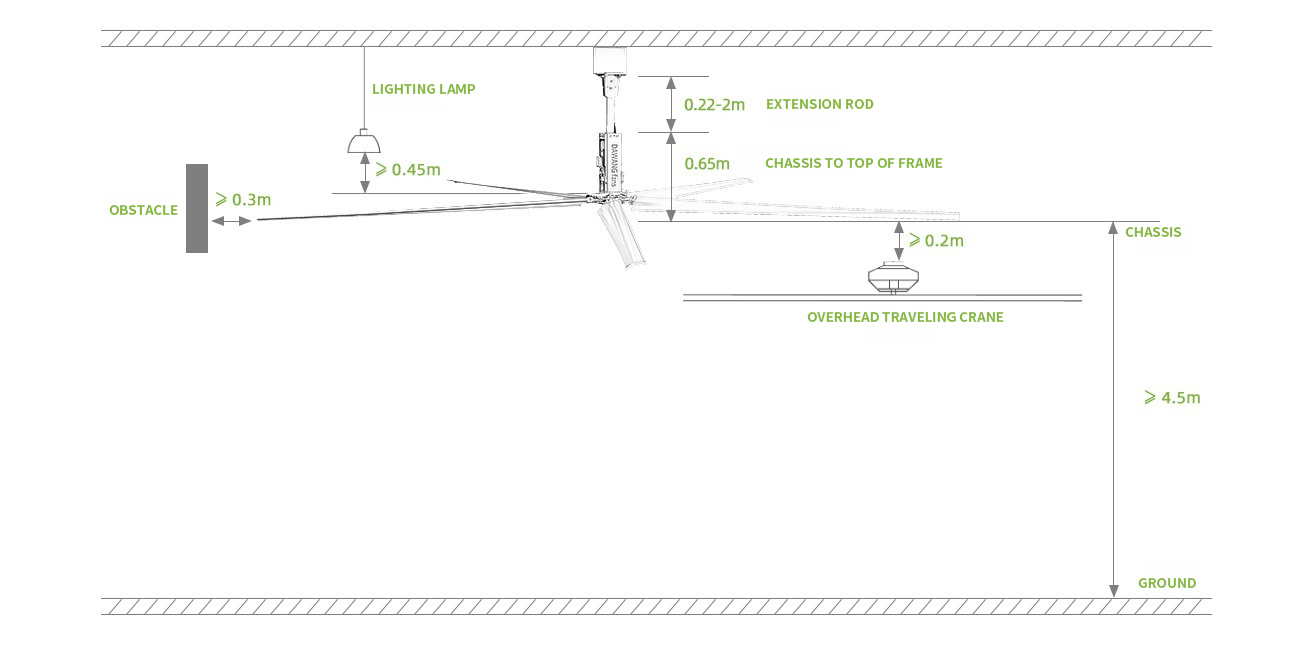

Installation Clearance

w.fans

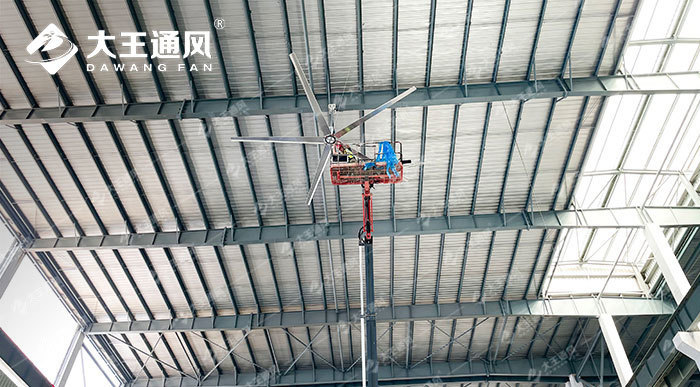

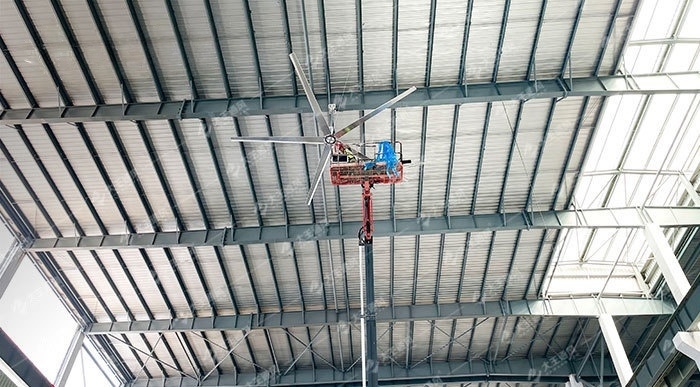

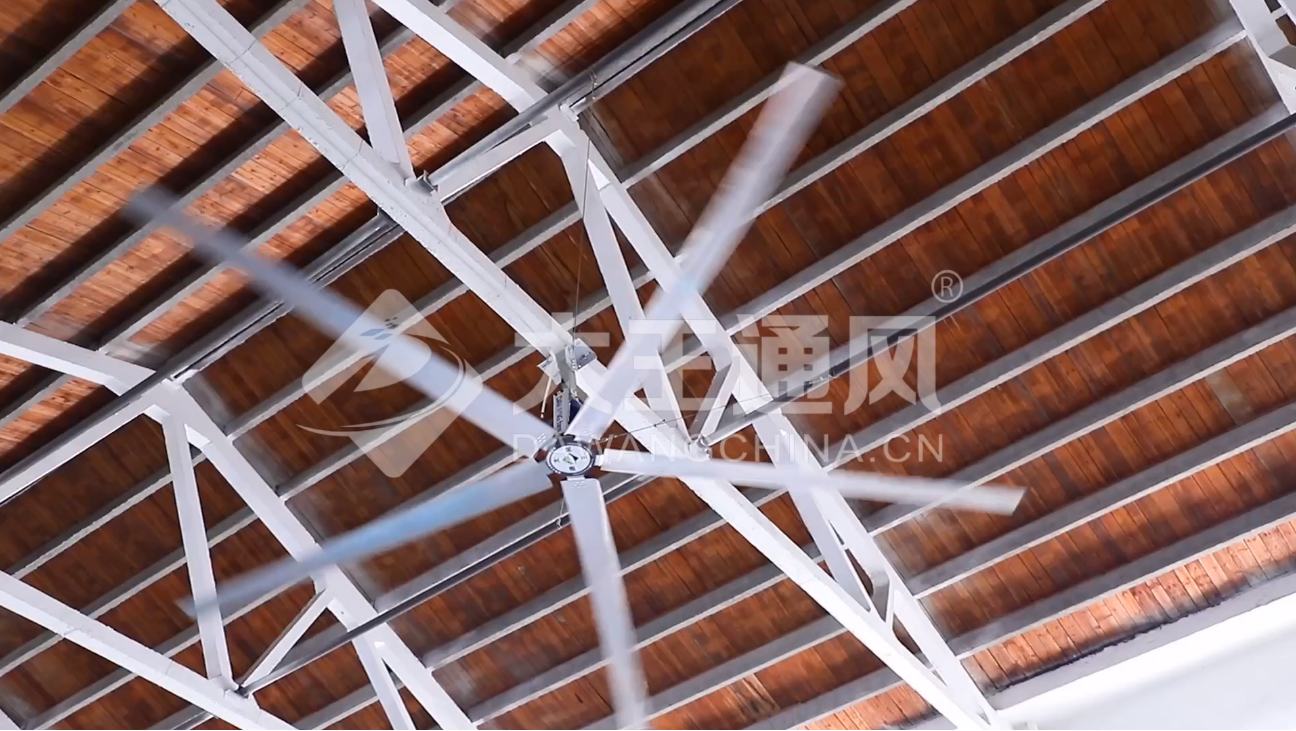

D.FANS - Applicable applications

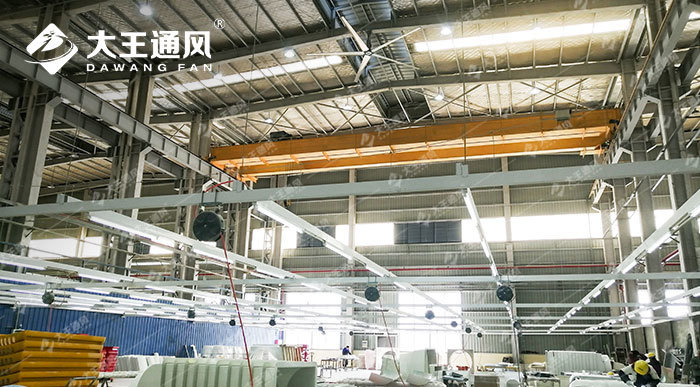

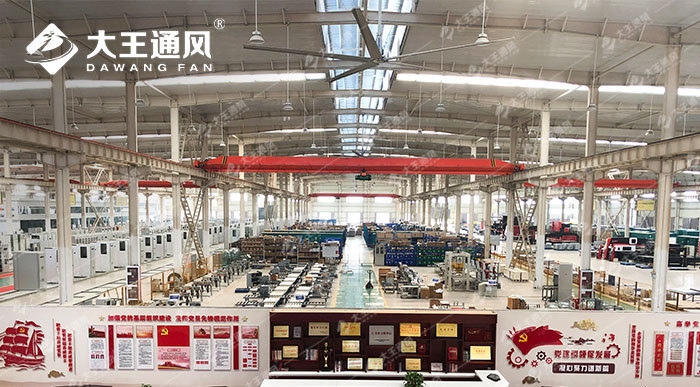

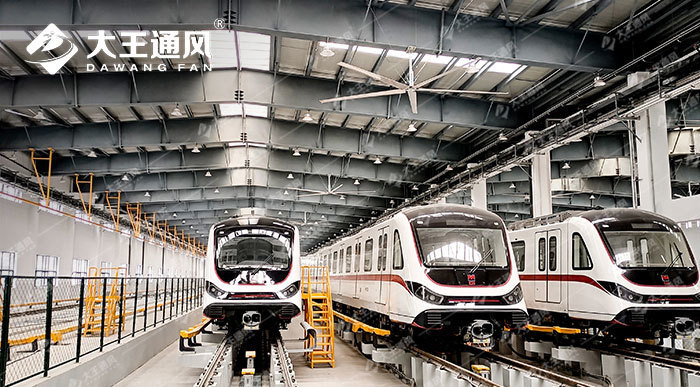

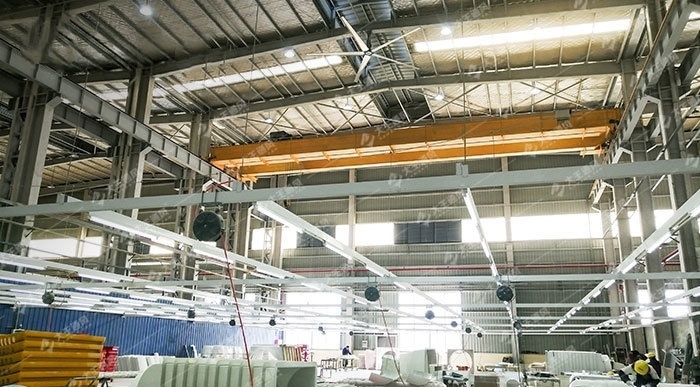

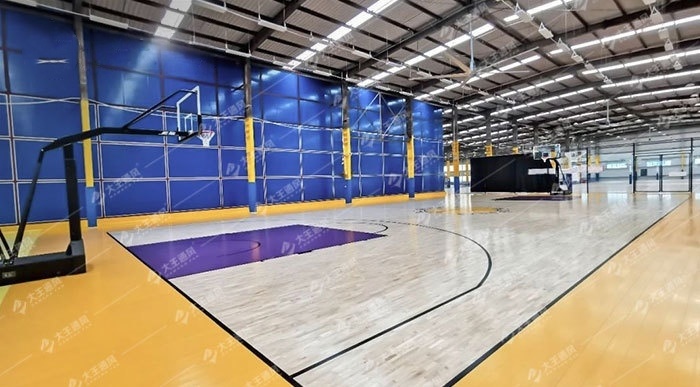

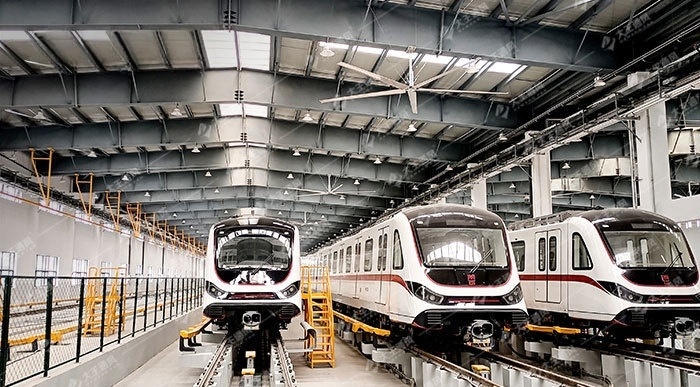

Workshop / logistics storage / gym / gymnasium / indoor sports field / exercise room / convention and exhibition center / 4S shop / product distribution market / large shopping malls and supermarkets / corporate office building lobby / villas / canteens / museums / large-scale outdoor commercial activities rental / large Playground / Animal and Botanical Garden / Children's Playground / Train Station / High Speed Rail Station / Bus Station / Subway Station / Terminal……

Free consultation

Whether you are in an industrial park plant, station, warehouse, shopping mall or school, our experts will provide you with easier, more comfortable and more convenient solutions for your reference. You can call us for consultation anytime 400-086-9230or request a quote to learn more about how to ventilate.
