DAWANG Industrial Ceiling Fans For Warehouse
COMPANY INTRODUCE
Jiangsu Dawang Ventilation Machinery Co., Ltd. (hereinafter referred to as "Dawangfan") is the HVLS (High Volume-Low Speed) new intelligent IoT large energy-saving fans manufacturer,committed to providing customized solutions for ventilation,cooling,dehumidification and dust removal in all tall spaces!
Dawangfan devotes to R&D,manufacture,sales and comprehensive maintenance for new generation HVLS(High Volume-Low Speed) fans.With years of experience and strong R&D team,Dawang continues to introduce new fans,such as HVLS large energy-saving ceiling fan,vertical fan,wall fan and mobile fan based on PMSM (Permanent Magnet Synchronous Motor),we always keep the progressiveness in this industry!
Dawangfan has more than 20 patents,including 3 invention patents,completed intellectual property,which get the "High-tech Enterprise","Wuxi Chuying Enterprise" and other honors.The fan has passed FCC,CE,ROSH,CCC,CSA,GL,UL certification,authoritative destructive test of the key components.
Dawangfan has passed IS09001:2015 quality management system certification,occupational health and safety management system,five-star after-sales service qualification certification and TUV in-depth factory inspection.
DAWANG HVLS FANS PERFORMANCE:
1.COMFORTABLE COOLING
Simulate 2-3 level natural wind,evaporates the sweat quickly,the body feels cool down 39-450 F.
2.15072M³/MIN SUPER LARGE AIR VOLUME
8m large diameter,2400m2 effective area,eliminate the muggy, moist,smoke,dust and odor.
3.COMPREHENSIVE ALL DIRECTION CIRCULATION
Accelerate the air circulation,eliminate the temperature stratification effectively.
4.FEWER NOISE
38db Ultra fewer noise, solve the noise problem.
5.MORE ENERGY SAVING
Max 1.2KWH,match to national high efficiency and energy saving standards.
6.MORE INTELLIGENCE
APP remote control,real-time operation monitor, proactive technical support,preventive maintenance strategy
W.FANS HVLS INDUSTRIAL FAN
Dawang develops the new PMSM HVLS large energy-saving industrial fan based on aerodynamic principles,unique large blade and motor,push the natural wind,eliminate the hot,humidity,stratified,odor,dust and other more problems.
TECHNICAL PARMETERS

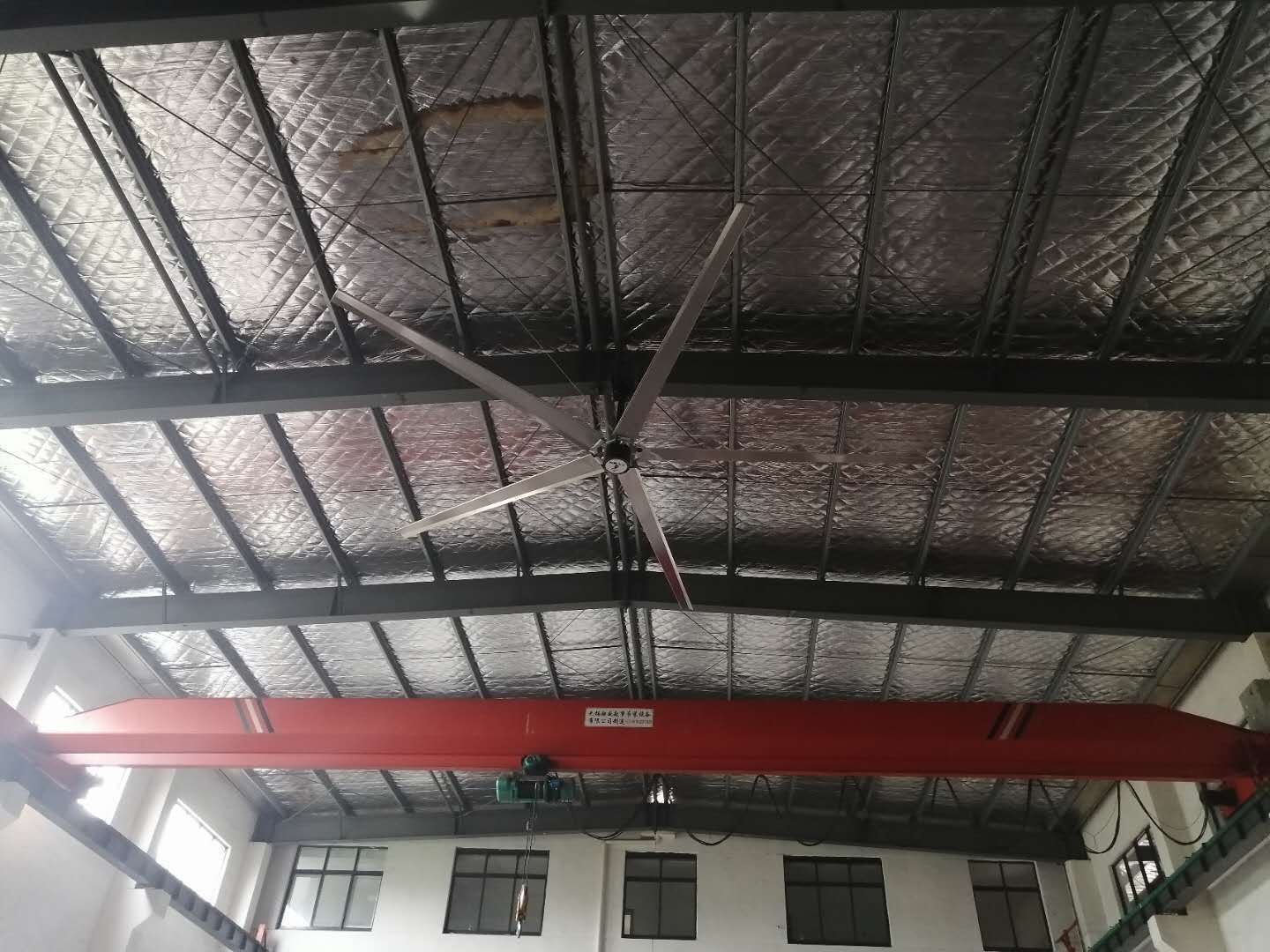

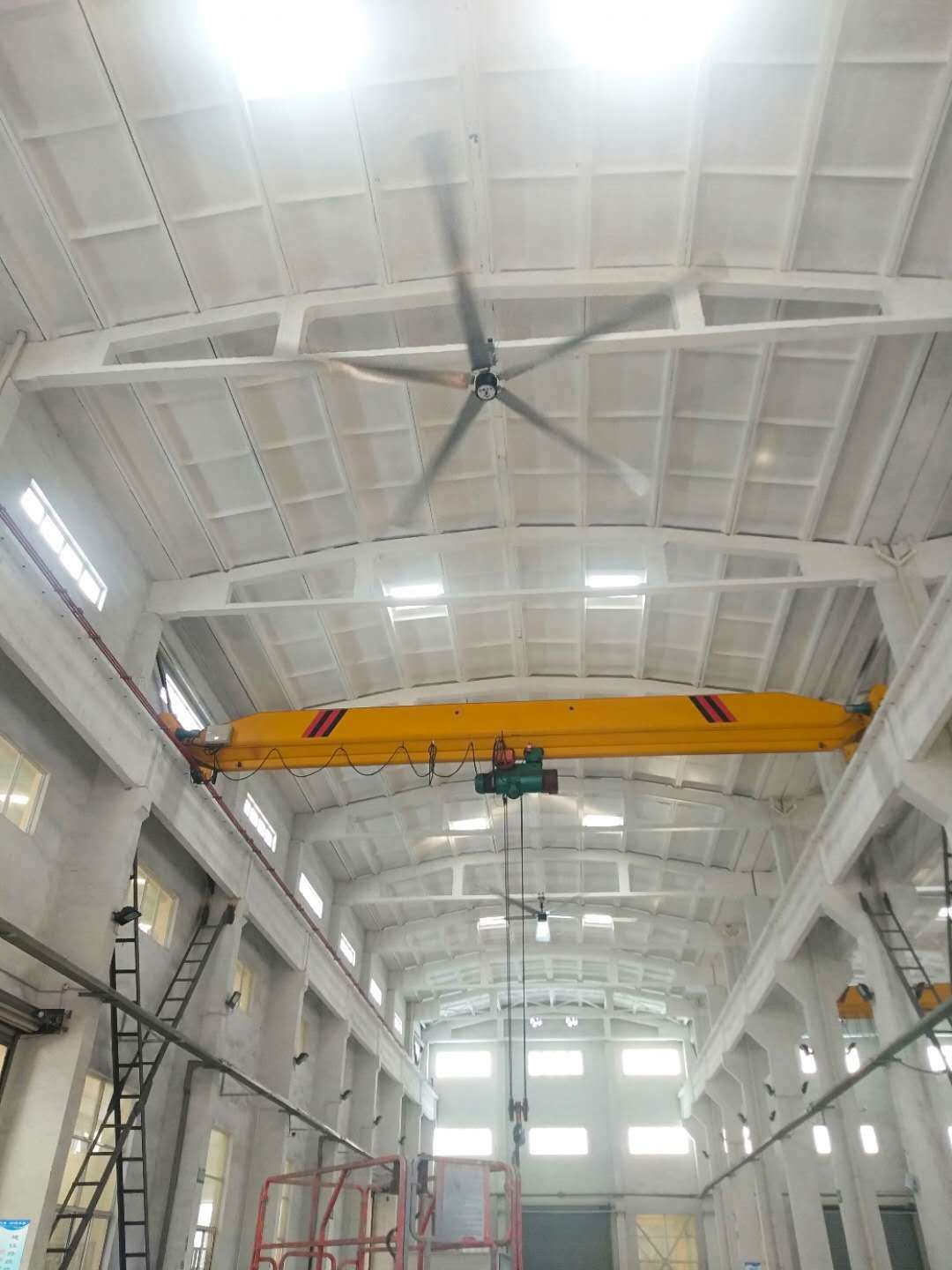

DAWANGFAN APPLICATION
Commercial area: Exhibition center, 4S shops,large terminal market,supermarket.
Industrial area: Gym& Fitness Center,Warehouse,factory
Agricultural area: Greenhouse,Barn
Public:Airport, rail-way station, bus station, metro station,Garage,Church



10+
Safety guarantees

Long life free maintenance
PMSM motor

15072m³/min
Full air volume

8m
Fan diameter

1.5kw/h
Motor power

App
Easy and convenient






Choose the right fan
Say goodbye to danger


Easy to break--Ordinary profile blade


Easy to break
hard connection


Easy to fall
Tenonless structure


No break, No fall
Dawang Ventilation high quality material structure large fan
10+ SAFETY GUARANTEE

STREAMLINED VARIABLE CROSS-SECTION
Conform to aerodynamic equal chord length theory,combined with the relative linear velocity principle,the blade narrows and thins from root to tip till tail then widen,the air is more even and uniform.

AVIATION ALUMINUM PLATE
1.5mm thickness 5052 Ultra-high toughness aviation aluminum plate can load more than 3Ton tensile to ensure the blade can deform quickly and absorb external force effectively, It can prevent the blade from breaking,avoid the damage to the motor and other structural parts reatly.

BLADE HIGH-STRENGTH CONNECTION
Each blade is fixed with the buffer cavity by 16pcs high-strength rivets, each rivet can load 1.5 ton shear force.

BUFFER DEVICE
The blade and petiole flexible connects with buffer device, the rubber absorbs the most vibration from blades when running.

ANTI-FALLING RING
The concave flange are engaged with the convex anti-falling ring each other under the gravity to ensure a reliable connection between the flange and motor.

SAFETY RING
Connect the 5 petioles into a whole to form the sleeve with the frame lower hub to prevent the petioles from falling.

MORTISE AND TENON PETIOLE CONNECTION
The convex petiole with concave buffer device form the Joint engaged,eliminate the centrifugal force from the blades when the fan is running and the shear force when the fan starts and stops.

HIGH-TENSILE STRENGTH PETIOLE
6061-T6 petiole,high strenght,HB90 hardness,it has good corrosion resistance with 205MPa tensile strength.

WIRE ROPE WIND PROTECTION
Mounting bracket and I Beam winded with 1000KG tensile wire rope to prevent sliding and falling.

WIRE ROPE BALANCE PROTECTION
Four wire ropes are fixed with building traction to prevent shaking and falling.

ABNORMAL ALARM SYSTEM
The VFD system comes with accident protection.It will automatically alarm and stop work.

REAL-TIME MONITOR AND INITIATIVE MAINTENANCE
Dawang intelligent remote control system realtime monitor the fan operating parameters,motor temperature rise ,fan horizontal level and so on.

Motor system:PMS motor
1.More stronger:260N.m torque,more stronger,more stabler torque,air volume increases 30%.
2.More efficient:Unique outer rotor high torque design,higher accuracy.
3.More energy saving:30% energy saving,up to IE4 high-efficiency energy-saving standards,GB30253-2013 national energy efficiency new standard.
4.Free maintenance for life :Totally sealed,no need to replace lubricating oil,seals and other accessories,more cost-effective.
5.Lower noise:38db lower noise,more comfortable.
6.Lower temperature:Motor raised temperature lower than 35℃,longer life.
Vfd:Vector converter
1.More steady:New generation of high-reliability IGBT modules,Motor vector algorithm and current suppression let the start more steady.
2.More quiet:Up to 16KHZ,no noise during the speed up, slow down and running.
3.More reliable:PCBA three-proof paint treatment,durable and long life.
4.Restart: It can smooth restart when the blades not completely stopped.
5.Failure protection:More than 25 fail-safe protections (over current and voltage,under voltage,phase loss,overload,etc.)


Blades- Airflow components
1.Blade design-Streamline variable cross-section
Conform to aerodynamic equal chord length theory,combined with the relative linear velocity principle,the blade narrows(304-186mm) and thins(43mm-21mm) from root to tip till tail then widen,the air is more even and uniform.
2.Blade material-Aviation aluminum alloy
1.5mm thickness No.5052H32 aviation aluminum alloy original plate,precision CNC molding,high strength and flexibility ensure the blade not to be broken.
3.Blade weight-More lighter and safer
6.7kg per blade(24ft),less blades,lighter weight,it can reduces the motor load,prolong the life,more safe and cost-efficient.
Connection:Patented full mortise and tenon structural design to ensure the whole fan safety:
1.Blade and petiole
Mortise and tenon connection:
The convex petiole with concave buffer device form the Joint engaged,eliminate the centrifugal force from the blades when the fan is running and the shear force when the fan starts and stops.
The transverse screw is the same direction with fan running track to avoiding the shear in order to ensure the blade will not broken,eliminate the possible Safety hazards radically.
2.Petiole and wheel hub
The petiole and hub/motor are integrated by the stepped concave-convex sections to engage each other.The overall structure is used to withstand the centrifugal force during running,and all fasteners are not stressed.
3.Motor and flange roulette
Safety ring:Connect the 5 petioles and motor upper cover form the whole,adopt the occlusion structural to even the force of the whole fan.
Anti-falling roulette:The concave flange roulette engaged with the convex anti-falling ring each other under the gravity to ensure the reliable connection between the flange roulette and motor.

Applications






Technical Parameters

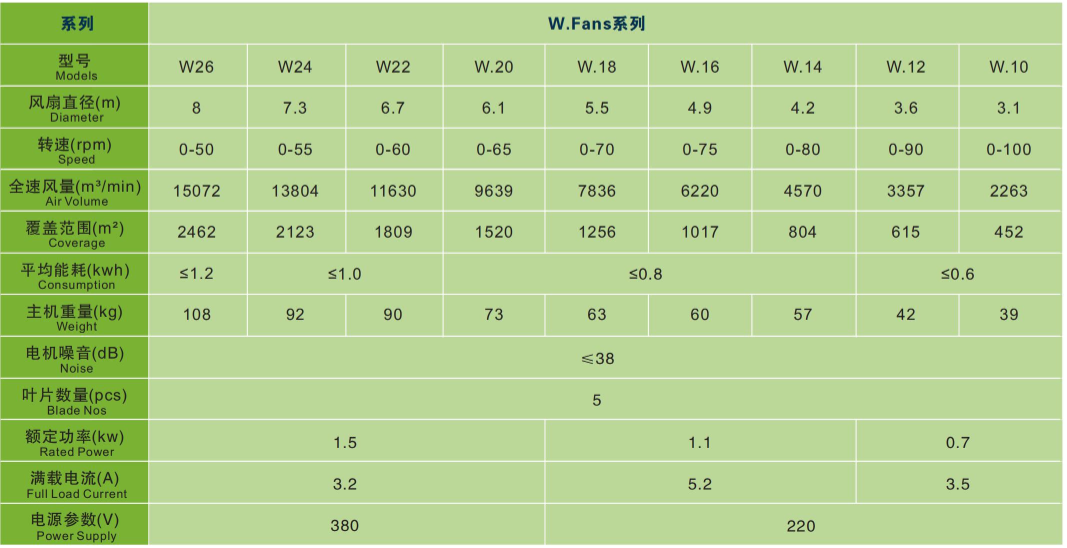

Product series | W.FANS form | ||||||||
Product model |
W26
|
W24
|
W22
|
W20
|
W18
|
W16
|
W14
|
W12
|
W10 |
Specification/Diameter (m) |
8
|
7.3
|
6.7
|
6.1
|
5.5
|
4.9
|
4.2
|
3.6
|
3.1 |
Speed range (rpm) |
10-45
|
10-55
|
10-60
|
10-60
|
10-70
|
10-75
|
10-80
|
10-90
|
10-100 |
Full speed air volume (m³/min) |
15072
|
13804
|
11630
|
9639
|
7836
|
6220
|
4570
|
3357
|
2263 |
Coverage area (m²) |
2462
|
2123
|
1809
|
1520
|
1256
|
1017
|
804
|
615
|
452 |
Rated power (kw) |
1.5
|
1.1
|
0.75 |
0.4
|
|||||
Average energy consumption (kw·h) |
≤1.2
|
≤1.0 |
≤0.8
|
≤0.6 | |||||
Motor noise (dB) |
≤38
|
||||||||
Power parameters (V) |
380V/220S
|
||||||||
Full load current (A) | 2.8(380V)/4.6(220V) | 2.6(380V)/3.0(220V) |
0.75
|
2.0 | |||||
Machine weight (kg) |
108
|
92 | 90 |
73
|
63 | 60 |
47
|
42 | 39 |
Installation Clearance
W.FANS - Applicable areas
Workshop / logistics storage warehouse/gym / gymnasium / indoor sports field / training room/large amusement park / animal botanical garden / children's playground/Railway Station / high speed railway station / car station / subway station / terminal……
