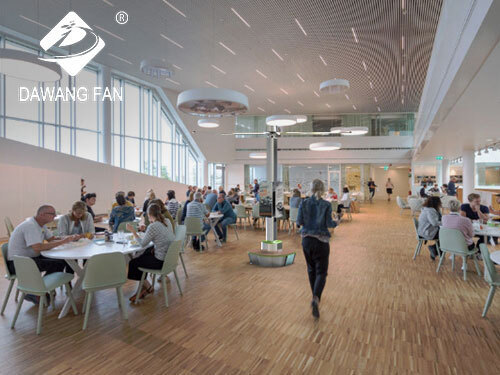

Huge hvls fan for restaurant



When it comes to restaurants, “comfort” is more than just a food category – it’s vital to creating a welcoming atmosphere. Most restaurants maintain their thermostats at a temperature pleasing to the vast majority of people – typically 68°F to 72°.

However, maintaining that ideal temperature is harder than it sounds. While the thermostat may be set at 70°F, the air near a busy kitchen might be closer to 80°F. Guests under an air conditioning vent may feel closer to 55°F or 60°F. Large windows, indoor-outdoor seating, constantly opening doors, hot plates of food and more can hamper temperature uniformity in a dining area.

Ceiling fans are a simple, effective solution. Most people think of fans solely as a cooling instrument, but overhead fans are also the most effective way to distribute both air-conditioned and heated air. Using fans to mix the air creates consistent temperatures throughout the restaurant, eliminating troublesome hot and cold spots.

In the world of personal comfort, which is typically managed through energy-intensive heating, ventilation and air-conditioning systems, ceiling fans are also an energy-efficient, environmentally friendly choice.

Huge hvls fan for restaurant

10+

Intelligent atomization cooling system

Timed quantification,cooling and humidification

10+

Intelligent epidemic prevention system

Timed and quantitative,comprehensive disinfection

10+

Multimedia video, audio/advertising access

Multimedia ultra-high-definition display (LCD/LED),scroll text,pictures,video,audio and interactive functions

10+

5G micro site (Telecom, China Mobile, China Unicom)

Enjoy WIFI anytime,you can surf the internet real time anywhere,get the traffic and advertisements to expand the marketing




10+

Intelligent security monitor

Real-time preview,playback,storage,alarm,video can be extended with related facial recognition,license plate recognition and other functions

10+

Intelligent environmental monitoring system

According to climate and environment,real-time monitor the temperature,humidity and PM2.5,multimedia scrolling display

10+

Miniature station,leisure seat

Mobile power,fast charging

10+

Intelligent remote

APP:Intelligent and convenient,real-time monitor,initiative maintenance


Technical parameter



DW.Fans

Models

DW.18

DW.16

Diameter(m)

5.5

4.9

Speed(rpm)

0-70

0-75

Air Volume(m³/min)

7836

6220

Coverage(m²)

1256

1017

Consumption(kw/h)

≤0.8

Weight(kg)

63

60

Noise(dB)

≤38

Blade Nos(pcs)

5

Rated power(kw)

1.1

Full Load Current(A)

5.2

Power supply(V)

220

*Custom is available

Installation height instruction

w.fans

More advantages

No limitation
The fan adopts the pole design,which solves the limitation problem that traditional industrial fans cannot be installed.
More practical
More functions can be added as require,such as billboards,lights,seats,etc.
More smart
Small size,more widely application, especially for small spaces to ventilation and cooling.
More intelligence
Touch screen for control, simple operation,more convenient.


DW.FANS - Applicable applications

Workshop / logistics storage / gym / gymnasium / indoor sports field / exercise room / convention and exhibition center / 4S shop / product distribution market / large shopping malls and supermarkets / corporate office building lobby / villas / canteens / museums / large-scale outdoor commercial activities rental / large Playground / Animal and Botanical Garden / Children's Playground / Train Station / High Speed Rail Station / Bus Station / Subway Station / Terminal……

Free consultation

Whether you are in an industrial park plant, station, warehouse, shopping mall or school, our experts will provide you with easier, more comfortable and more convenient solutions for your reference. You can call us for consultation anytime 400-086-9230or request a quote to learn more about how to ventilate.
Keep in touch




DAWANG

10+
Safety guarantees

DAWANG

Long life free maintenance
PMSM motor

DAWANG

15072m³/min
Full air volume

DAWANG

8m
Fan diameter

DAWANG

1.5kw/h
Motor power

DAWANG

App
Easy and convenient

DAWANG
DAWANG
DAWANG
DAWANG
DAWANG
DAWANG

Choose the right fan

Say goodbye to danger

DAWANG
图片名称

Easy to break--Ordinary profile blade

DAWANG
DAWANG

Easy to break

hard connection

DAWANG
图片名称

Easy to fall

Tenonless structure

DAWANG
图片名称

No break, No fall

Dawang Ventilation high quality material structure large fan

10+ SAFETY GUARANTEE


DAWANG

STREAMLINED VARIABLE CROSS-SECTION

Conform to aerodynamic equal chord length theory,combined with the relative linear velocity principle,the blade narrows and thins from root to tip till tail then widen,the air is more even and uniform.

DAWANG

AVIATION ALUMINUM PLATE

1.5mm thickness 5052 Ultra-high toughness aviation aluminum plate can load more than 3Ton tensile to ensure the blade can deform quickly and absorb external force effectively, It can prevent the blade from breaking,avoid the damage to the motor and other structural parts reatly.

DAWANG

BLADE HIGH-STRENGTH CONNECTION

Each blade is fixed with the buffer cavity by 16pcs high-strength rivets, each rivet can load 1.5 ton shear force.

DAWANG

BUFFER DEVICE

The blade and petiole flexible connects with buffer device, the rubber absorbs the most vibration from blades when running.

DAWANG

ANTI-FALLING RING

The concave flange are engaged with the convex anti-falling ring each other under the gravity to ensure a reliable connection between the flange and motor.

DAWANG

SAFETY RING

Connect the 5 petioles into a whole to form the sleeve with the frame lower hub to prevent the petioles from falling.

DAWANG

MORTISE AND TENON PETIOLE CONNECTION

The convex petiole with concave buffer device form the Joint engaged,eliminate the centrifugal force from the blades when the fan is running and the shear force when the fan starts and stops.

DAWANG

HIGH-TENSILE STRENGTH PETIOLE

6061-T6 petiole,high strenght,HB90 hardness,it has good corrosion resistance with 205MPa tensile strength.

DAWANG

WIRE ROPE WIND PROTECTION

Mounting bracket and I Beam winded with 1000KG tensile wire rope to prevent sliding and falling.

DAWANG

WIRE ROPE BALANCE PROTECTION

Four wire ropes are fixed with building traction to prevent shaking and falling.

DAWANG

ABNORMAL ALARM SYSTEM

The VFD system comes with accident protection.It will automatically alarm and stop work.

DAWANG

REAL-TIME MONITOR AND INITIATIVE MAINTENANCE

Dawang intelligent remote control system realtime monitor the fan operating parameters,motor temperature rise ,fan horizontal level and so on.

dawang

Motor system:PMS motor

1.More stronger:260N.m torque,more stronger,more stabler torque,air volume increases 30%.
2.More efficient:Unique outer rotor high torque design,higher accuracy.
3.More energy saving:30% energy saving,up to IE4 high-efficiency energy-saving standards,GB30253-2013 national energy efficiency new standard.
4.Free maintenance for life :Totally sealed,no need to replace lubricating oil,seals and other accessories,more cost-effective.
5.Lower noise:38db lower noise,more comfortable.
6.Lower temperature:Motor raised temperature lower than 35℃,longer life.

Vfd:Vector converter

1.More steady:New generation of high-reliability IGBT modules,Motor vector algorithm and current suppression let the start more steady.
2.More quiet:Up to 16KHZ,no noise during the speed up, slow down and running.
3.More reliable:PCBA three-proof paint treatment,durable and long life.
4.Restart: It can smooth restart when the blades not completely stopped.
5.Failure protection:More than 25 fail-safe protections (over current and voltage,under voltage,phase loss,overload,etc.)

dawang
dawang

Blades- Airflow components

1.Blade design-Streamline variable cross-section
Conform to aerodynamic equal chord length theory,combined with the relative linear velocity principle,the blade narrows(304-186mm) and thins(43mm-21mm) from root to tip till tail then widen,the air is more even and uniform.
2.Blade material-Aviation aluminum alloy
1.5mm thickness No.5052H32 aviation aluminum alloy original plate,precision CNC molding,high strength and flexibility ensure the blade not to be broken.
3.Blade weight-More lighter and safer
6.7kg per blade(24ft),less blades,lighter weight,it can reduces the motor load,prolong the life,more safe and cost-efficient.

Connection:Patented full mortise and tenon structural design to ensure the whole fan safety:

1.Blade and petiole
Mortise and tenon connection:
The convex petiole with concave buffer device form the Joint engaged,eliminate the centrifugal force from the blades when the fan is running and the shear force when the fan starts and stops.
The transverse screw is the same direction with fan running track to avoiding the shear in order to ensure the blade will not broken,eliminate the possible Safety hazards radically.
2.Petiole and wheel hub
The petiole and hub/motor are integrated by the stepped concave-convex sections to engage each other.The overall structure is used to withstand the centrifugal force during running,and all fasteners are not stressed.
3.Motor and flange roulette
Safety ring:Connect the 5 petioles and motor upper cover form the whole,adopt the occlusion structural to even the force of the whole fan.
Anti-falling roulette:The concave flange roulette engaged with the convex anti-falling ring each other under the gravity to ensure the reliable connection between the flange roulette and motor.

dawang

Applications

DAWANG
DAWANG
DAWANG
DAWANG
DAWANG
DAWANG

Technical Parameters

Product series W.FANS form
Product model
W26
W24
W22
W20
W18
W16
W14
W12
W10
Specification/Diameter (m)
8
7.3
6.7
6.1
5.5
4.9
4.2
3.6
3.1
Speed range (rpm)
10-45
10-55
10-60
10-60
10-70
10-75
10-80
10-90
10-100
Full speed air volume (m³/min)
15072
13804
11630
9639
7836
6220
4570
3357
2263
Coverage area (m²)
2462
2123
1809
1520
1256
1017
804
615
452
Rated power (kw)
1.5
1.1
0.75
0.4
Average energy consumption (kw·h)
≤1.2
≤1.0
≤0.8
≤0.6
Motor noise (dB)
≤38

Power parameters (V)
380V/220S

Full load current (A) 2.8(380V)/4.6(220V) 2.6(380V)/3.0(220V)
0.75
2.0
Machine weight (kg)
108
92 90
73
63 60
47
42 39

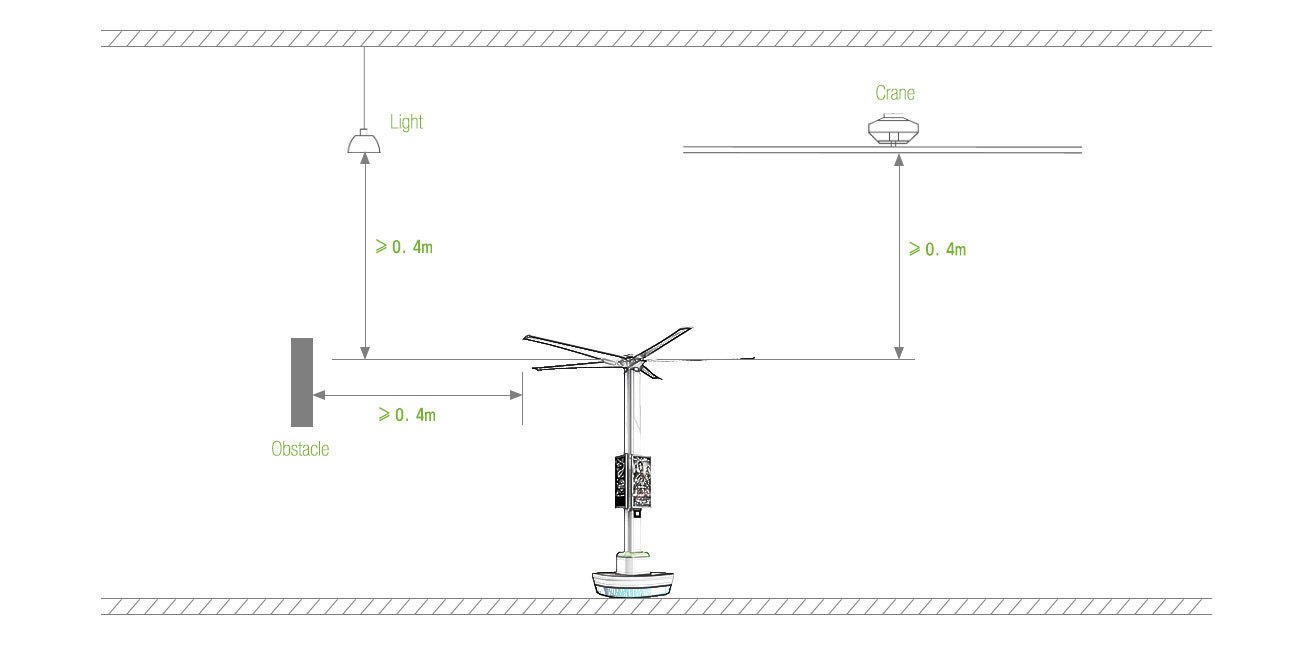

Installation Clearance

w.fans

W.FANS - Applicable areas

Workshop / logistics storage warehouse/gym / gymnasium / indoor sports field / training room/large amusement park / animal botanical garden / children's playground/Railway Station / high speed railway station / car station / subway station / terminal……
